Equipped with TGS5141 electrochemical Carbon monoxide sensor module - AG-4-CO-M5141

It has good stability and selectivity
Digital communication mode
Indoor and outdoor air quality testing
Gas detection in industrial fields, etc

Model Number: AG-4-CO-M5141
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Equipped with TGS5141 electrochemical Carbon monoxide sensor module AG-4-CO-M5141 Product Description:

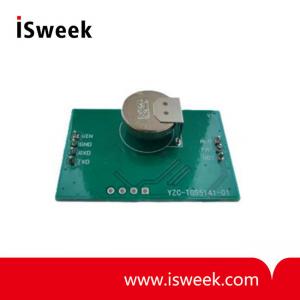

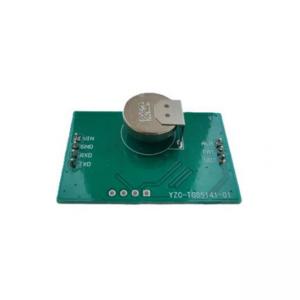

The AG-4-CO-M5141 is an embedded type module equipped with the Figaro’s carbon monoxide gas sensor TGS5141, for accurately detecting carbon monoxide (CO) gas concentrations in various environments. The module has been pre-calibrated before leaving the factory and has good stability and selectivity. It includes a built-in temperature sensor for data correction via software algorithms, minimizing environmental impact on measurement accuracy. It uses digital communication (UART bus output) for gas concentration, which allows users to easily and quickly integrate the module into various systems, making it suitable for both indoor and outdoor air quality detection, as well as industrial gas detection

Equipped with TGS5141 electrochemical Carbon monoxide sensor module AG-4-CO-M5141 Application:

Residential and commercial CO detectors

Fire detection

Equipped with TGS5141 electrochemical Carbon monoxide sensor module AG-4-CO-M5141 Technical Specification:

Item	Specification
Model Number	AG-4-CO-M5141
Target Gases	CO
Sensing Principle	Electrochemical
Detection Range	0-1000ppm
Resolution	1ppm
Measurement Error	< ±5% FS
Operating Voltage	3.2 - 5.5V DC
Operating Current	≤ 500mA@5V
Output Signal	UART (+3.0V TTL)
Temperature Range	-10°C - +55°C
Humidity Range	0% -90%RH
Pressure Range	900.0 to 1120 mbar
Storage Temperature	-10 to +40°C
Size	LWH=41mm27mm21mm
Expected Life	≥ 10 years
